Configuration 01
Standard cabinet with wire feeder
PRODUCT SERIES · CATALOG PAGES 01–02
Water-Cooled Handheld Laser Welding Machine
Five-function water-cooled handheld welder: welding, cutting, remote cleaning, weld seam cleaning, and energy-storage welding with single, double, or triple wire feed.
About the Water-Cooled Handheld Laser Welding Machine
The machine has 5 functions: welding, cutting, remote cleaning, weld seam cleaning and energy-storage welding. It can be connected with single wire, double wire, or three wire, with a swing width of 0–8 mm to realize thick-plate wide-seam welding. The ultra-lightweight laser head is equipped with double protective lenses, which solves the vulnerability of the focusing lenses of traditional handheld welding machines and saves maintenance cost. An intelligent temperature monitoring system automatically detects the lens temperature; if the temperature exceeds the set value, an alarm is triggered and the device stops working.
Where This Series Is Used
Widely used for complex and irregular welding in cabinets, kitchen and bathroom products, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, and stainless steel furniture.
Published Specifications (激光焊接机-水冷)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 1500 W / 2000 W / 3000 W | 6000 W |
| Welding thickness | 0.5 – 6 mm | 0.5 – 12 mm |
| Welding width | 0 – 5 mm (double wire feed 0 – 8 mm) | |
| Fiber length | 10 m / 20 m (customizable) | |
| Cooling method | Constant temperature circulating water cooling | |
| Working voltage | 220 V 1PH — 380 V 3PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 01–02). Options, consumables, and country-specific compliance are confirmed at quotation.
4 Configurations in This Series

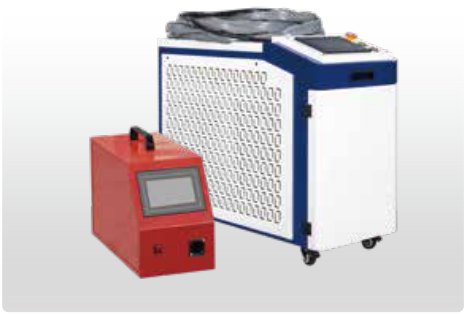

Configuration 02
Perforated-door cabinet

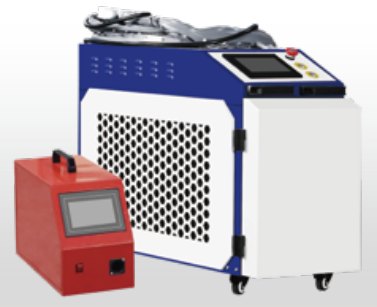

Configuration 03
Hex-vent cabinet

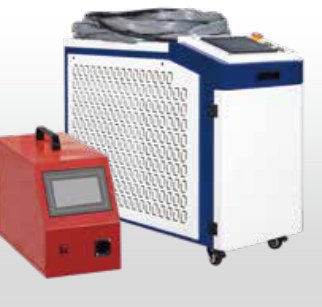

Configuration 04
Side-panel cabinet
