Configuration 01
Trolley cabinet, water-cooled
PRODUCT SERIES · CATALOG PAGES 07–08
Pulsed Laser Cleaning Machine
Handheld precision cleaning at exact locations and sizes. Pulse cleaning works without high temperature and does not damage the workpiece substrate.
About the Pulsed Laser Cleaning Machine
Hand-held precision cleaning performs selective work at precise locations and sizes. Compared with traditional mechanical or chemical cleaning — rough processing, high cost, environmental pollution — pulsed laser cleaning has no media, no secondary pollution, simple operation, and non-contact advantages. Compared with continuous laser cleaning, pulse cleaning works without high temperature and does not damage the workpiece substrate. The product is small, easy to carry and operate, with a stable cleaning system.
Where This Series Is Used
Suitable for the automobile manufacturing, railway transportation, aerospace, marine, mold and tooling, and petrochemical industries.
Published Specifications (脉冲激光清洗机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 100 W / 200 W / 300 W | 500 W / 1000 W |
| Cleaning width | 1 – 110 mm (optional scopes) | |
| Scanning speed | ≤ 20000 mm/s | |
| Fiber length | 3 m / 5 m / 10 m (customizable) | |
| Cooling method | Air cooling | Water cooling |
| Working voltage | 220 V 1PH — 380 V 3PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 07–08). Options, consumables, and country-specific compliance are confirmed at quotation.
6 Configurations in This Series

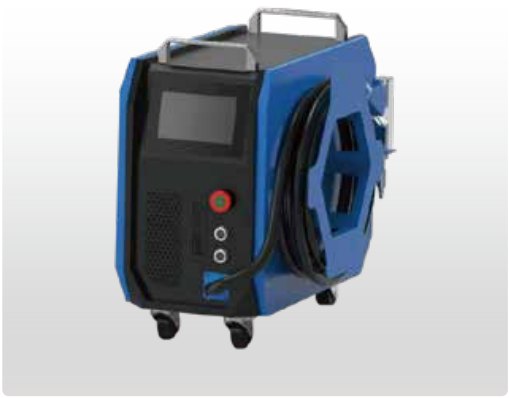

Configuration 02
Backpack portable, air-cooled

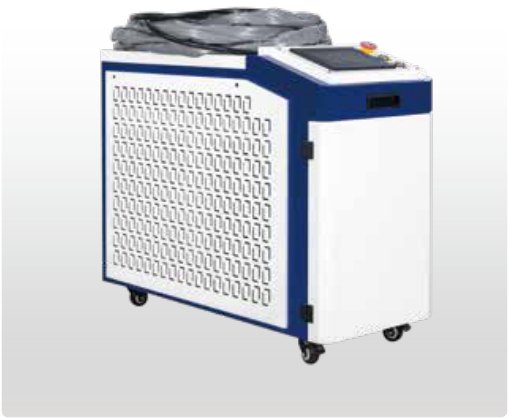

Configuration 03
Vertical cabinet, water-cooled

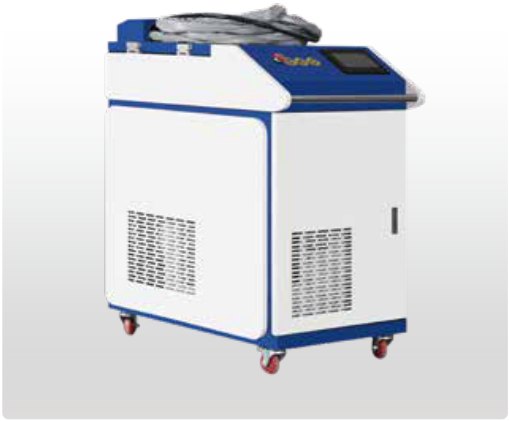

Configuration 04
Compact cabinet, water-cooled

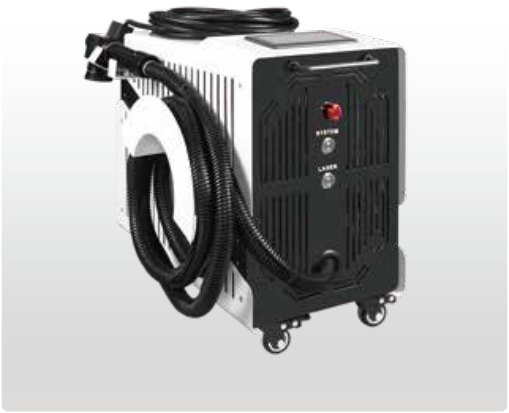

Configuration 05
Mobile trolley, air-cooled

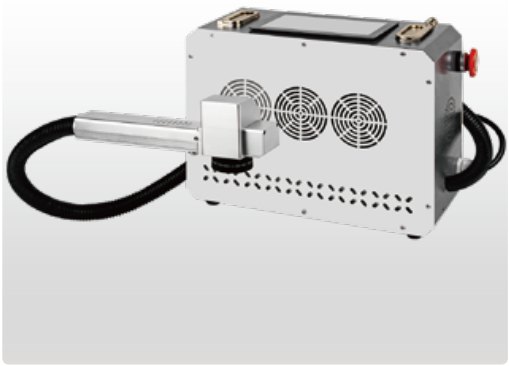

Configuration 06
Desktop three-fan unit, air-cooled
