Galvo platform — single station, with chiller
PRODUCT SERIES · CATALOG PAGES 09–10
Platform / Galvanometer Laser Welding Machine
Double-pendulum galvanometer welding head with MAX continuous laser source and XYZ 3-axis module for batch processing of batteries, sensors, and relays.
About the Platform / Galvanometer Laser Welding Machine
The platform laser welding machine is composed of a double-pendulum galvanometer welding head, a laser source, a water cooler, and motion modules. It adopts a MAX continuous laser source, a high-speed galvanometer, and an XYZ 3-axis module, which realize batch processing and improve work efficiency.
Where This Series Is Used
Welding of power batteries, sensors, relays, and similar components.
Published Specifications (平台焊接机/振镜焊接机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 1500 W / 2000 W / 3000 W | |
| Welding ability | 0.5 – 8 mm | |
| XYZ axis travel | X = 700 mm · Y = 400 mm · Z = 300 mm | |
| Other axis | Rotary shaft optional | |
| Cooling method | Constant temperature circulating water cooling | |
| Working voltage | 220 V 1PH — 380 V 3PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 09–10). Options, consumables, and country-specific compliance are confirmed at quotation.
2 Configurations in This Series
Configuration 02

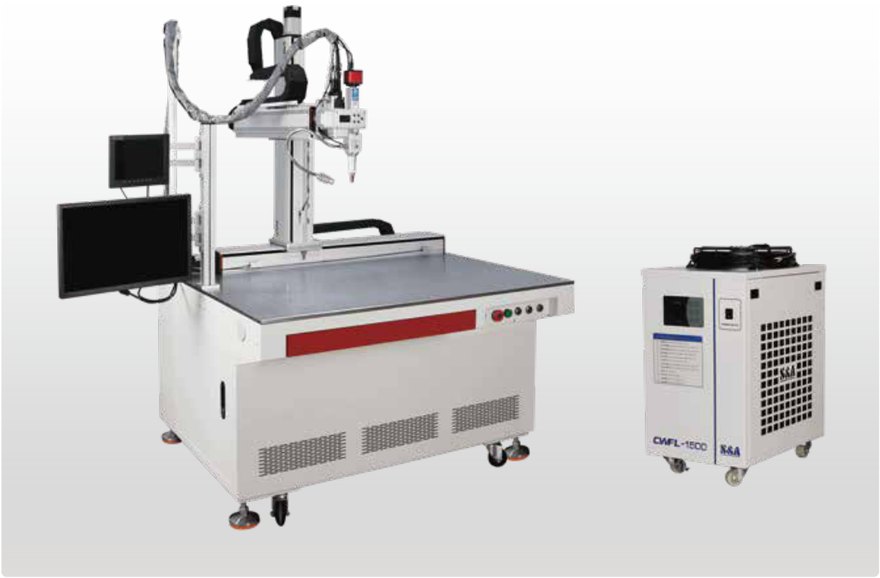

Galvo platform — dual station, with chiller
