Configuration 01
Generator with compressor and dryer — 15 W class
PRODUCT SERIES · CATALOG PAGES 23–24
Nitrogen Making Machine
Compressor-fed PSA nitrogen package with refrigerated dryer: 99.99% purity at 1–3 NM³/h for laser cutting assist gas and electronics or petrochemical use.
About the Nitrogen Making Machine
The nitrogen system uses an air compressor to provide the gas source, and a cold dryer to filter oil, water, and impurities so the molecular sieve in the nitrogen generator does not fail; the nitrogen generator then produces qualified nitrogen for the equipment to use.
Where This Series Is Used
Wide range of applications including the laser industry, electronics, and petrochemicals.
Published Specifications (制氮机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Machine power | 15 W / 25 W | |
| Nitrogen flow | 1 – 3 NM³/h | |
| Nitrogen purity | 99.99% | |
| Inlet pressure | 0.6 – 0.8 MPa | |
| Nitrogen pressure | ≤ 0.6 MPa | |
| Working voltage | AC 220 V | |
Values transcribed from the manufacturer catalog (Catalog pages 23–24). Options, consumables, and country-specific compliance are confirmed at quotation.
2 Configurations in This Series

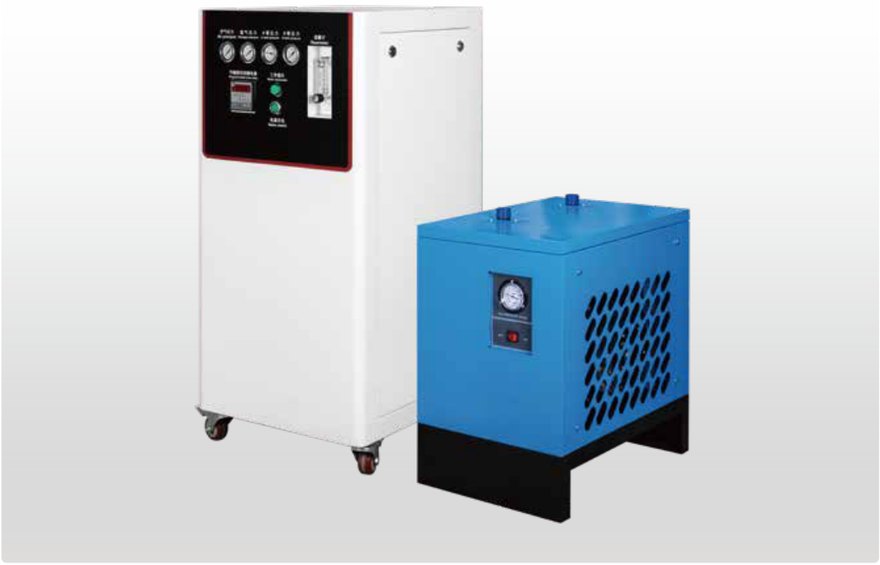

Configuration 02
Generator with compressor and dryer — 25 W class
