Configuration 01
Vertical tower with chiller
PRODUCT SERIES · CATALOG PAGES 21–22
Jewelry Laser Spot Welder
Time- and energy-split beams weld multiple points simultaneously for high-speed, precision gold and silver jewelry work — microscope, red-light, or CCD sighting.
About the Jewelry Laser Spot Welder
The laser beam can be separated in time and energy, and multiple beams can be processed at the same time, significantly increasing welding speed. Users process orders efficiently with high quality in a short period, realizing high-speed welding and precision machining.
Where This Series Is Used
Professional welding of gold and silver jewelry, equipped with dedicated capability for punching, porosity (sand-eye) repair, and spot welding.
Published Specifications (首饰激光焊接机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 100 W / 200 W / 300 W | |
| Pulse width | 0.1 – 30 ms | |
| Minimum penetration | 0.15 mm | |
| Sighting system | Microscope / red light / CCD | |
| Cooling method | Air cooling or water cooling | |
| Working voltage | 220 V 1PH — 380 V 3PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 21–22). Options, consumables, and country-specific compliance are confirmed at quotation.
4 Configurations in This Series

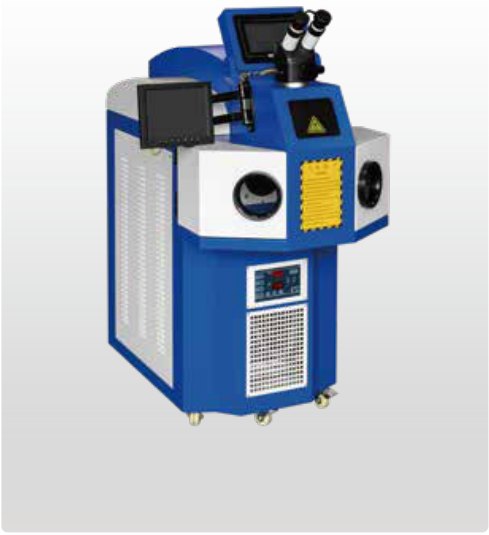

Configuration 02
Vertical tower, integrated

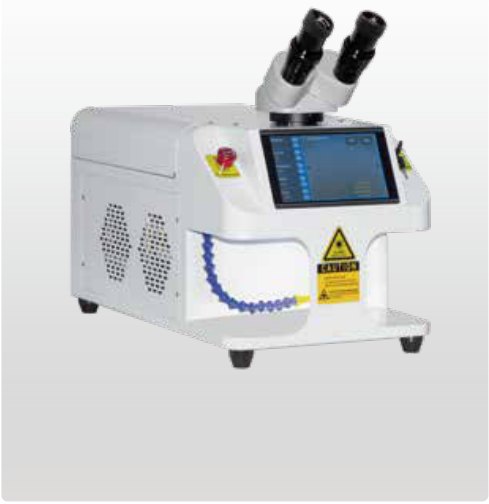

Configuration 03
Desktop microscope type

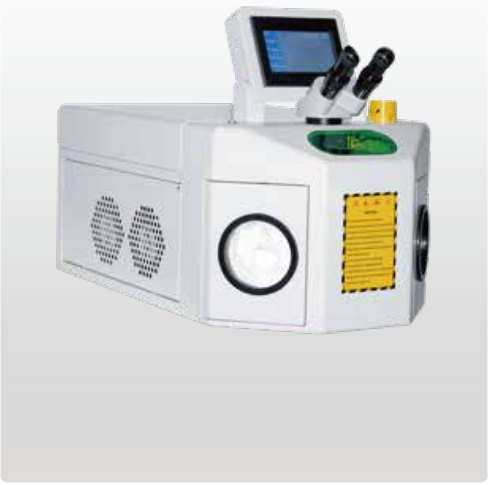

Configuration 04
Compact desktop type
