Configuration 01
Split desktop type
PRODUCT SERIES · CATALOG PAGES 11–12
Fiber Laser Marking Machine
Fast, efficient fiber marking with high photoelectric conversion. Maintenance-free with no consumables, in split, desktop, cabinet, and handheld formats.
About the Fiber Laser Marking Machine
The fiber laser marking machine has fast marking speed and high efficiency. The photoelectric conversion efficiency is high, which greatly saves electric energy. The output beam quality is good, the service life is long, and it is maintenance-free with no consumables, saving operating cost. Formats include split, desktop, cabinet, and handheld types.
Where This Series Is Used
Applicable to stainless steel, carbon steel, aluminum oxide, aluminum alloy, aluminum, copper, iron, gold, silver, and cemented carbide surface engraving; also hard plastic, glazed ceramics, zisha clay, coated cartons, melamine board, mirror coatings, graphene, chip letter removal, cans, milk-powder buckets, and more.
Published Specifications (光纤激光打标机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Model types | Split · Desktop · Cabinet type · Handheld | |
| Laser power | 20 / 30 / 50 / 60 / 80 / 100 W (handheld 20 / 30 / 50 W) | |
| Precision | ± 0.008 mm split · ± 0.003 mm desktop/cabinet · ± 0.5 mm handheld | |
| Marking area | 75×75 – 300×300 mm (handheld 100×100 / 200×200 mm) | |
| Cooling method | Air cooling | |
| Working voltage | 110 V 1PH — 220 V 1PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 11–12). Options, consumables, and country-specific compliance are confirmed at quotation.
5 Configurations in This Series
Configuration 02

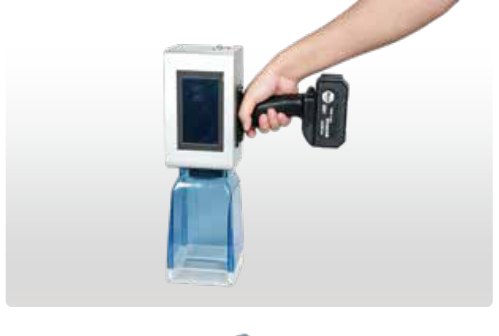

Handheld gun type
Configuration 03

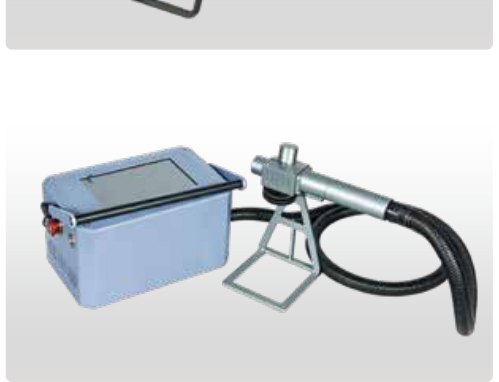

Portable suitcase type
Configuration 04

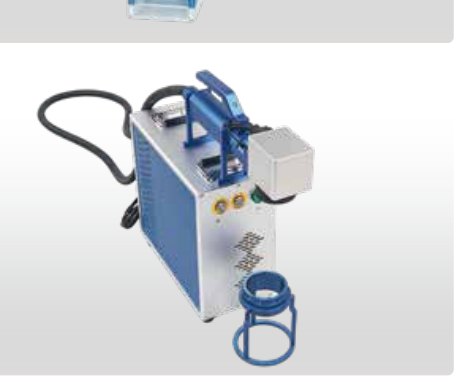

Integrated type with rotary fixture
Configuration 05

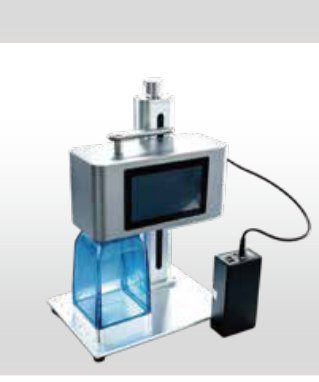

Compact desktop type
