Configuration 01
55 W enclosed Class-1 engraver
PRODUCT SERIES · CATALOG PAGES 19–20
CO2 Laser Engraving Machine
Class-1 enclosed CO2 engraver: cuts 20 mm acrylic or 18 mm basswood in one pass, 3D relief, camera positioning, auto fire suppression — plus a 1500 W gantry format.
About the CO2 Laser Engraving Machine
The 55 W CO2 laser engraver is designed for engraving and cutting a wide range of non-metallic materials: it cuts through 20 mm transparent acrylic or 18 mm basswood in a single pass and supports 3D relief engraving. Standard working area is 500 × 300 mm, expandable to 800 × 500 mm with an optional extension table. It processes cast acrylic (various colors), solid wood, bamboo, plywood, MDF, cork, leather (genuine and PU), fabrics, non-woven textiles, adhesive-backed materials, EVA foam, PVC sheets, paper including kraft, stone, ceramics, coated/plated metals, glass, and sintered stone. Certified Class 1 laser with flame detection and automatic fire suppression; a built-in HD camera enables visual positioning and batch engraving; autofocus, preset material parameters, integrated air assist, and an onboard exhaust fan make operation seamless. The proprietary software runs across phone, computer, and tablet. The 1500 W gantry variant covers a 420 × 420 mm area at 2000 mm/min.
Where This Series Is Used
Consumer goods, signage and gifts, packaging, education and makerspaces, architectural models, rubber stamps, denim and textile processing, glass and stone decoration, coated-metal marking, and more.
Published Specifications (激光雕刻机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 55 W | 1500 W |
| Processing area | 500×300 mm / 800×500 mm (extension table) | 420 × 420 mm |
| Engraving precision | 0.01 mm | |
| Engraving speed | 600 mm/s | 2000 mm/min |
| Laser type | 10.6 μm CO2 | |
Values transcribed from the manufacturer catalog (Catalog pages 19–20). Options, consumables, and country-specific compliance are confirmed at quotation.
2 Configurations in This Series

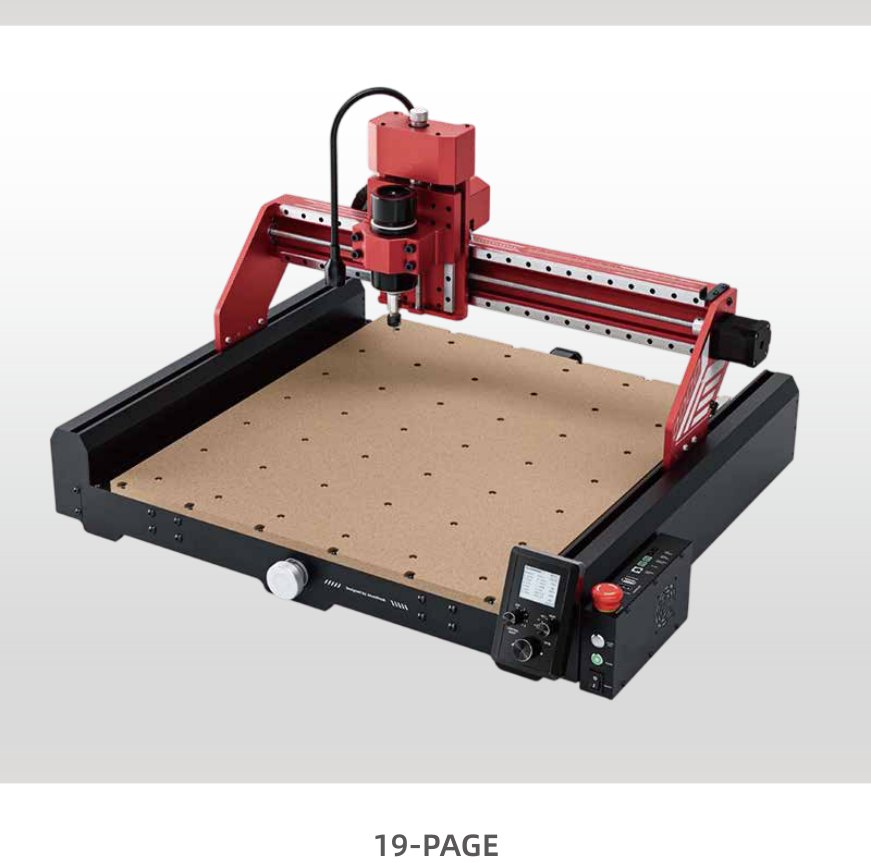

Configuration 02
1500 W gantry engraver
