Configuration 01
Hex-vent cabinet
PRODUCT SERIES · CATALOG PAGES 05–06
Continuous Laser Cleaning Machine
Non-contact continuous cleaning with no secondary pollution. Lightweight cleaning head and powerful water cooling keep the machine running 24 hours.
About the Continuous Laser Cleaning Machine
The laser cleaning machine adopts non-contact cleaning, which is energy-saving and environmentally friendly with no secondary pollution. The cleaning head is lightweight and the powerful water cooling system keeps the equipment running uninterrupted for 24 hours. It achieves precise positioning, fast cleaning speed, and high efficiency; the focal length can be adjusted for different scenes, which is convenient and fast.
Where This Series Is Used
Suitable for ships, boilers, steel surfaces, product surface treatment before welding, treatment of the oxide layer in and around welds after welding, coating removal, rust removal on metal, and rapid paint removal.
Published Specifications (连续激光清洗机)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 1500 W / 2000 W / 3000 W | 6000 W |
| Cleaning width | 1 – 300 mm | 1 – 500 mm |
| Scanning speed | ≤ 20000 mm/s | |
| Fiber length | 10 m / 20 m (customizable) | |
| Cooling method | Constant temperature circulating water cooling | |
| Working voltage | 220 V 1PH — 380 V 3PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 05–06). Options, consumables, and country-specific compliance are confirmed at quotation.
4 Configurations in This Series
Configuration 02

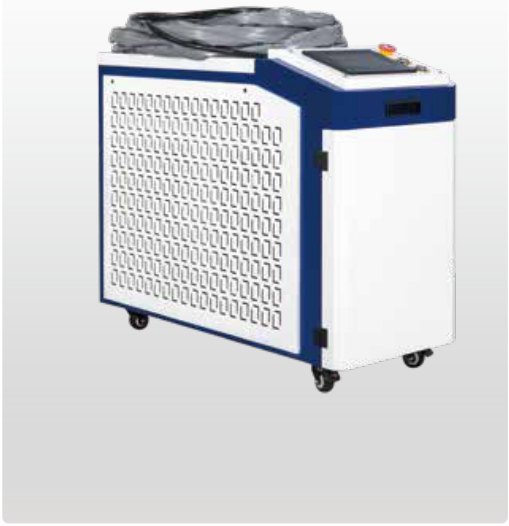

Perforated-door cabinet
Configuration 03

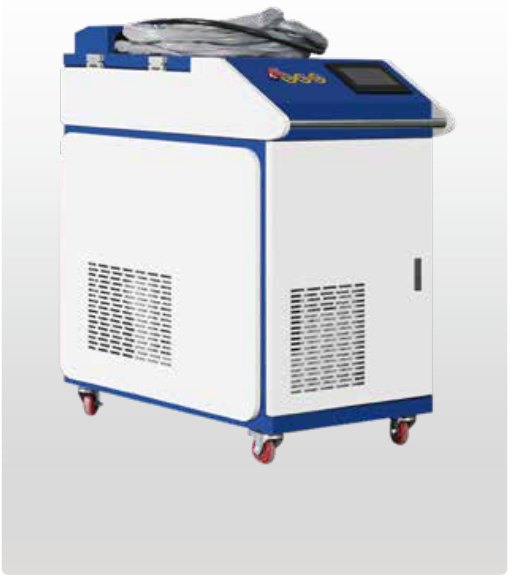

Flat-top cabinet
Configuration 04

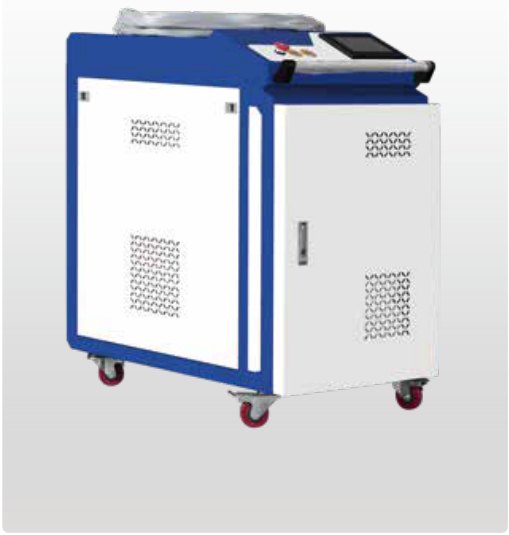

Dual-door cabinet
