Configuration 01
All-in-one air-cooled unit
PRODUCT SERIES · CATALOG PAGES 03–04
Air-Cooled / Refrigerant Handheld Laser Welding Machine
Chiller-free 1200 W handheld welder: welding, cutting and weld seam cleaning as standard, with remote cleaning and energy-storage welding optional.
About the Air-Cooled / Refrigerant Handheld Laser Welding Machine
The machine provides welding, cutting and weld seam cleaning as standard, with remote cleaning and energy-storage welding available as options. It connects to single, double, or triple wire with a swing width of 0–8 mm for thick-plate wide-seam welding. The ultra-lightweight laser head carries double protective lenses to solve focusing-lens fragility and cut maintenance cost. An intelligent temperature monitoring system detects lens temperature automatically and stops the device with an alarm above the set value.
Where This Series Is Used
Widely used for complex and irregular welding in cabinets, kitchen and bathroom products, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, and stainless steel furniture.
Published Specifications (激光焊接机-风冷/冷媒)
| Parameter | Standard configuration | High-power configuration |
|---|---|---|
| Laser power | 1200 W | |
| Welding thickness | 0.5 – 4 mm | |
| Welding width | 0 – 5 mm | |
| Fiber length | 10 m / 20 m (customizable) | |
| Cooling method | Air cooling / refrigerant cooling | |
| Working voltage | 220 V 1PH · 50 Hz / 60 Hz | |
Values transcribed from the manufacturer catalog (Catalog pages 03–04). Options, consumables, and country-specific compliance are confirmed at quotation.
2 Configurations in This Series

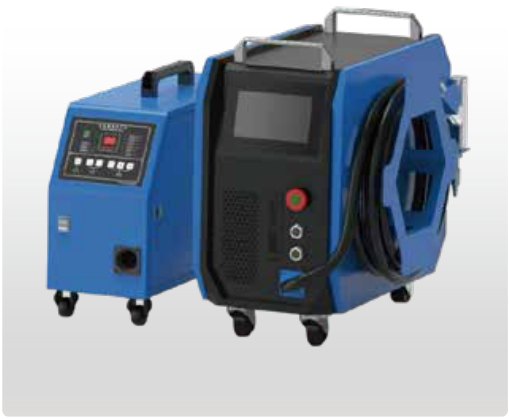

Configuration 02
Split portable air-cooled unit
